RS-20 Integrated Rail State Inspection Vehicle

The basic principle of rail state detection system is to record rail complete and continuous images based on high-speed HD digital imaging technology, and then design image processing and mode recognition algorithm to analyze the image, and finally realize the detection of visible abnormal track appearance. Its application purpose is to replace the traditional artificial patrol with automatic detection equipment.

The system design and implementation covers the professional technology and theory of optics, mechanical design, control science, computer science and information science and many other disciplines, and the technical difficulty of the system realization is relatively difficult.

  • Rail Flaw Detection System
  • Rail State Patrolling System
  • Ballast  Patrolling System
  • Tunnel Detection System
  • IoT Transmission Platform
Send Inquiry

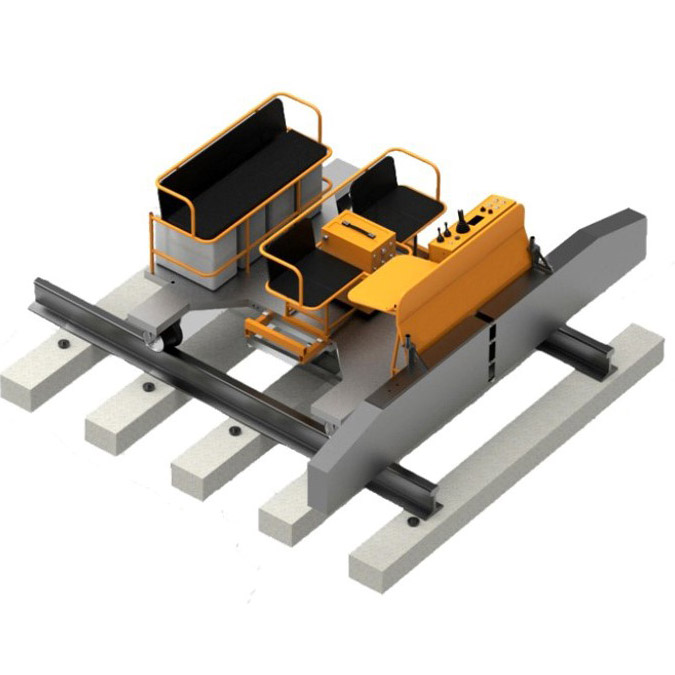

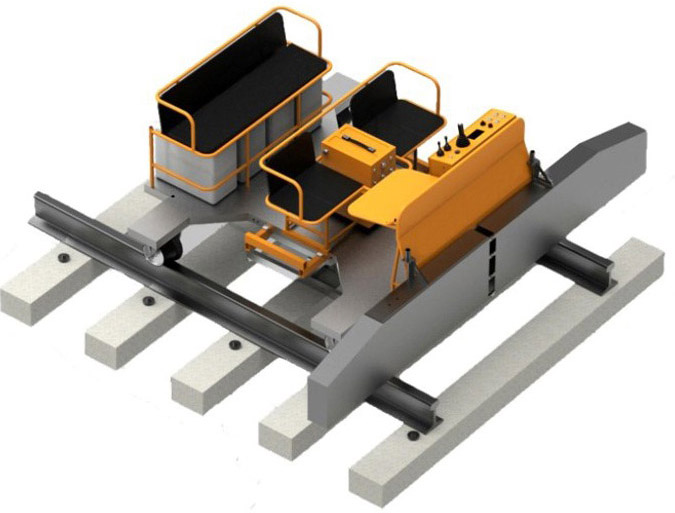

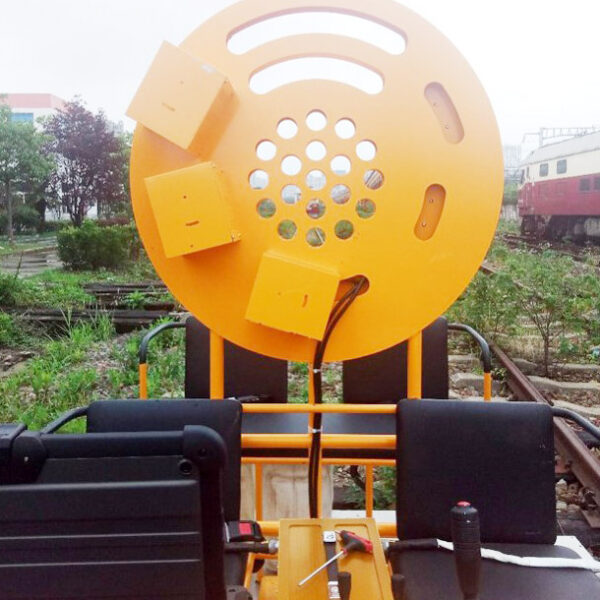

The RS-20 integrated rail state inspection vehicle can integrate the ultrasonic system to scan the rail image, which can well assist the playback person to complete the judgment of the flaw detector, and can also automatically identify the abnormal conditions on the track surface and both sides of the track.

Main Specifications:

Assembled size: 1800*1800*900mm

Total assembled weight: 131kg (single module weight<48kg)

Assembly time: <5 min (4 persons)

Slope capacity: Maxim 35‰

Motor power: 1200W

Endurance: 60KM or 4 hours

Maxim running speed: 20Km/h

Speed cruise: included

Mileage accuracy: 1‰

Parking slope: <35‰ (with water tank)

Battery protection system including several features like,  system over current, over pressure, under pressure, short circuit and other protection.

rail comprehensive patrolling vehicle

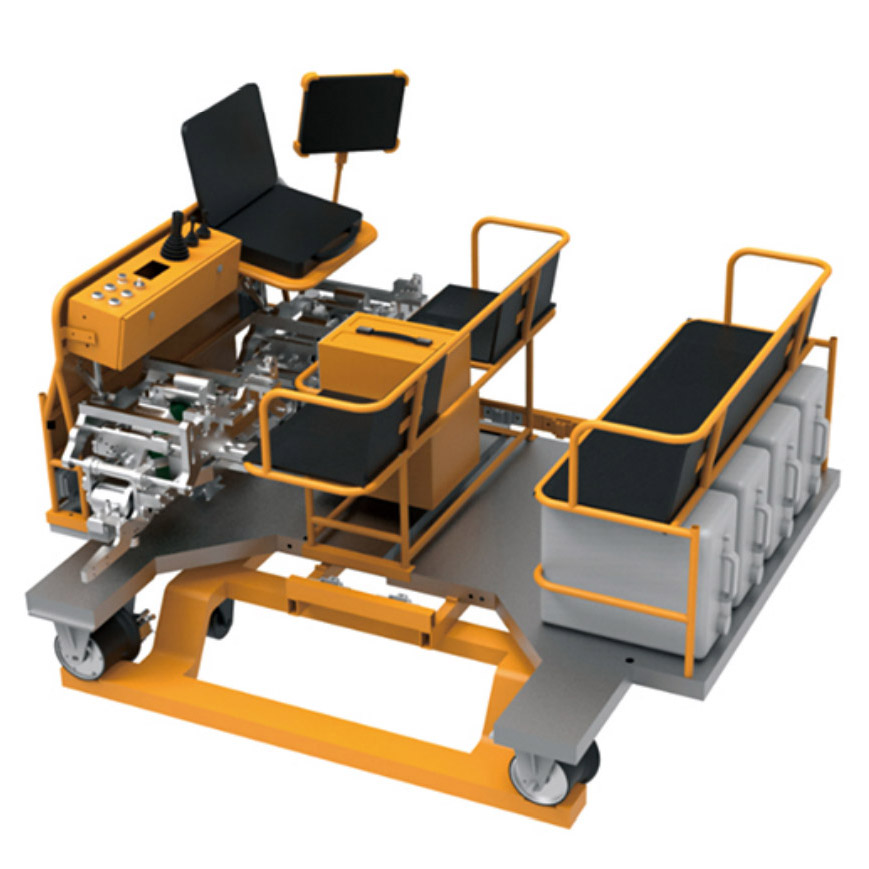

RS-20 integrated rail state inspection vehicle contains hardware and software parts. Hardware part main parts track monitoring image acquisition box, and software part includes, track image collection control software and image playback software (including automatic identification).

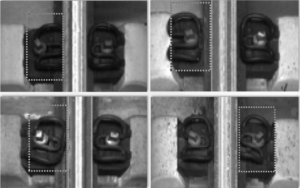

Rail state detection

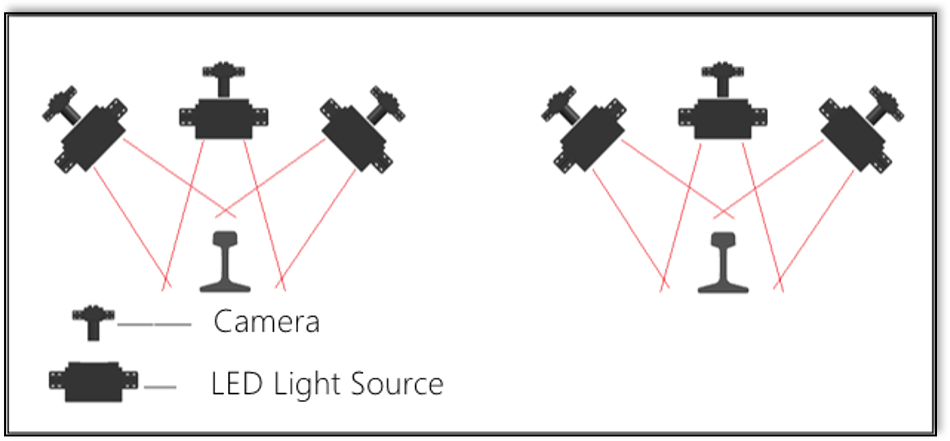

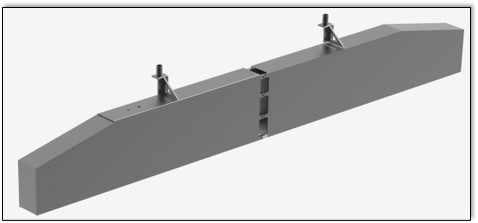

There is also image collection box for the rail monitoring system, and the camera array takes the rail images from 3 different angles. The camera uses a wire-array camera for collection, so the collected image does not deform and provide a guarantee for the subsequent image processing.

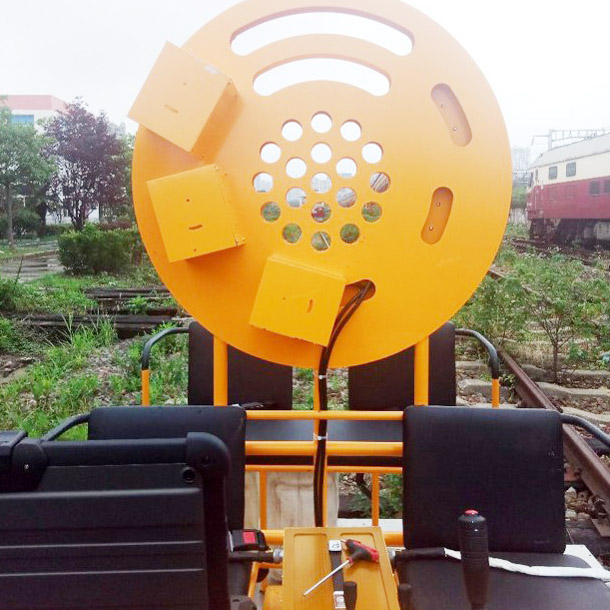

image acquisition camera


Rail Monitoring System

Rail monitoring system


Rail Bed Patrolling System

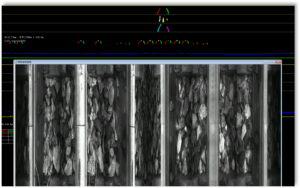

Ballast patrolling system

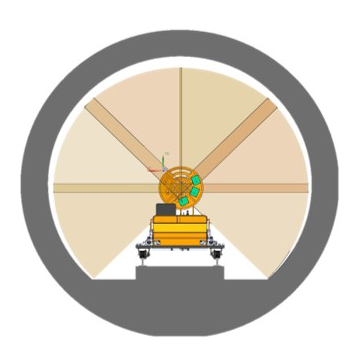

It is composed of hardware parts and software parts, it is very important function of rs-20 integrated rail state inspection vehicle, and the main part of the hardware is the tunnel detection image collection box, which is responsible for the overall channel bed image collection. The software part includes, tunnel image collection and control software, tunnel image data analysis software, and also tunnel inspection data management system.

tunnel test equipment

Please contact us for more product details!
